Elica
Elica EAS422SS Cabinet Insert Range Hoods
Elica EAS422SS Cabinet Insert Range Hoods
-
color-pattern:Silver
-
extraction-type:Ducted
-
grease-filter-material:Aluminum
-
brand:Elica
-
cfm:400
-
colour:Stainless Steel
-
width:22
Elica EAS422SS Cabinet Insert, 22 inch Exterior Width, 400 CFM, Outside / Ducting, LED, Dishwasher Safe Filters, Aluminum Mesh, Stainless Steel colour Blower Included
22'' Insert Hood
EAS422SS

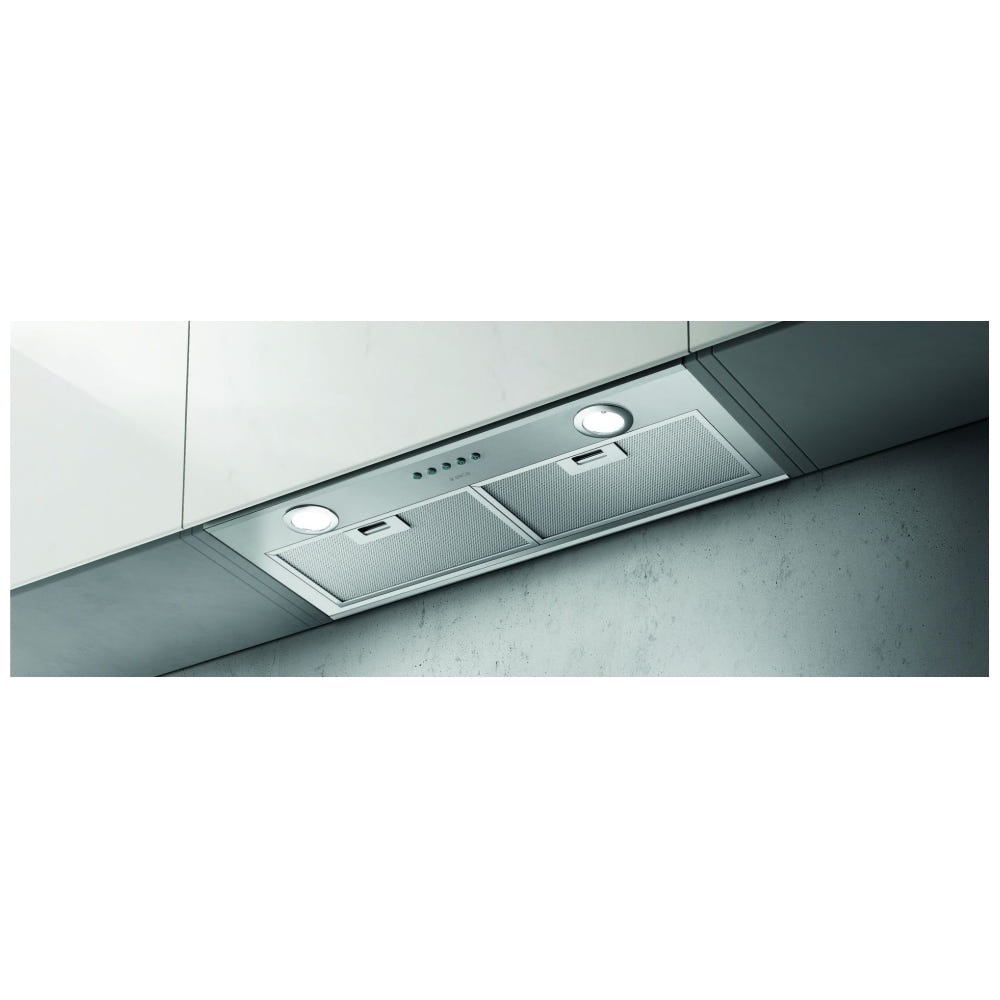

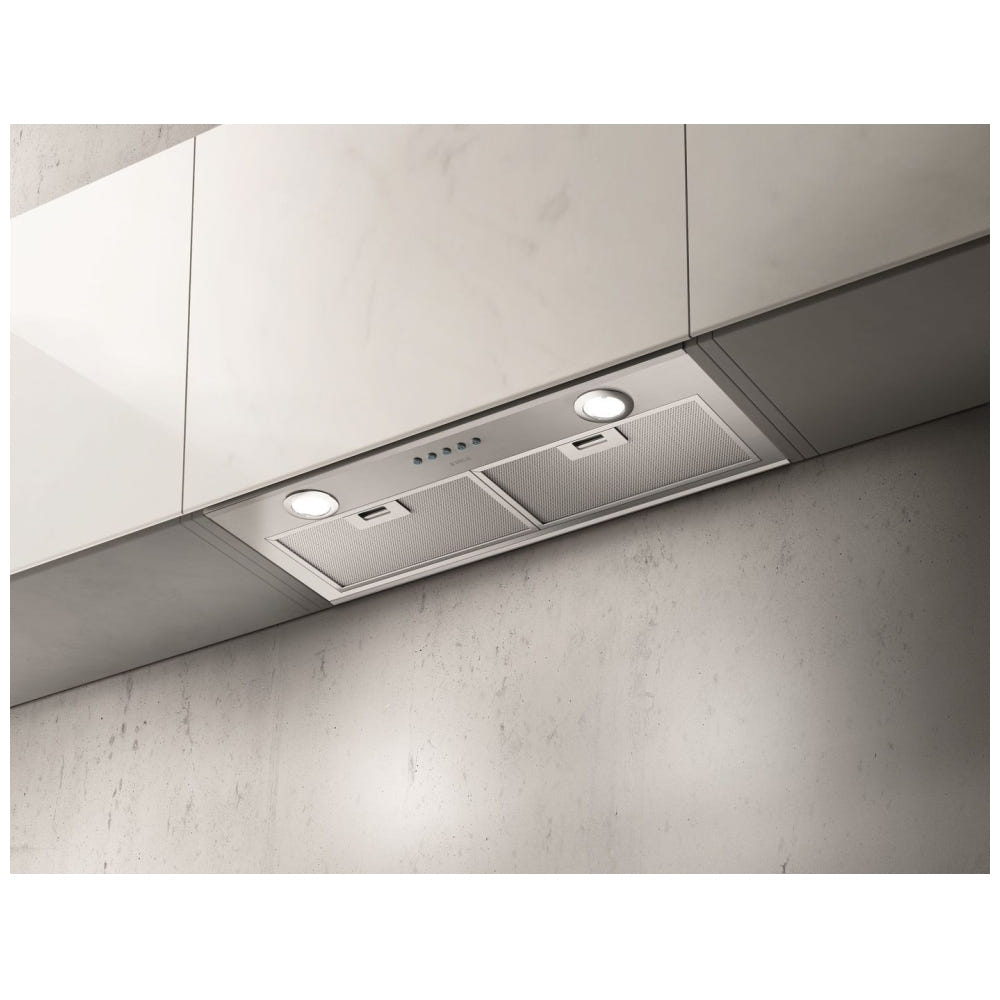

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight. Available in 22" and 28" sizes.
Technical features
Asti comes equipped with a powerful 400 CFM blower that can handle most of cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3 speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation (with kit sold separately).
- 3X Layer Mesh Filter
Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
- LED Light
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- 400 CFM, 3 speed
- 1.5 sones (min.) to 5.9 sones (max.)
- Ducting: 6'' Round (Top)
- LED Lights, 1 Level Lighting
- Dishwasher-safe, Anodized Aluminium Mesh
- 2 years Warranty | Parts and labour
Manufacturer's Warranty: 2 years
UPC: 190603003611
EAN: 0190603003611

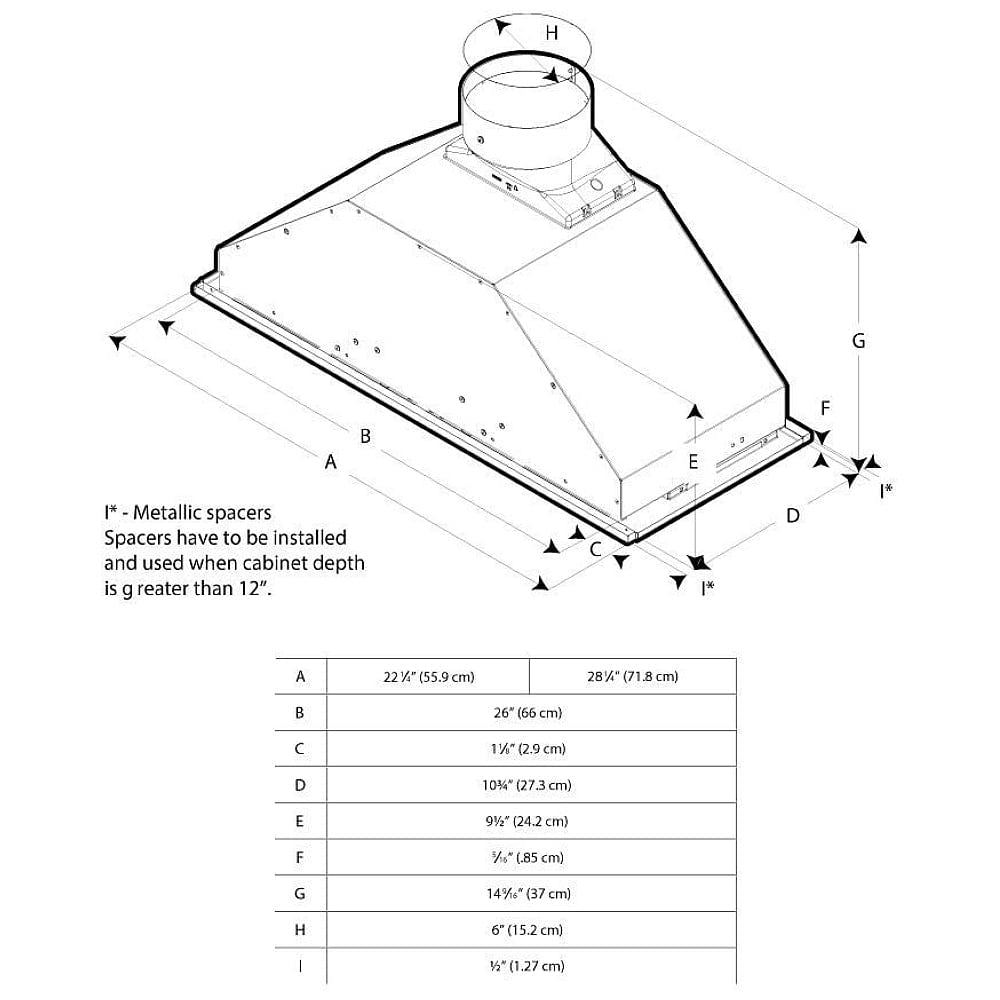

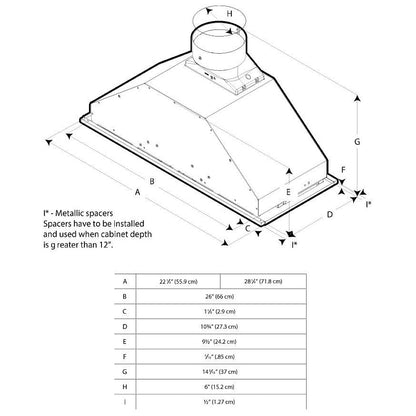

EAS422SS-dimensional-drawing-canada.pdf
EAS422SS-hood-liner-installation-sheet-30-and-36-canada.pdf
EAS422SS-install-instructions-for-28-model-canada.pdf
