Elica EMZ636S3 Wall Mount Range Hoods

Elica EMZ636S3 Wall Mount Range Hoods

$1,639.00 CAD
$1,639.00 CAD
Sale Sold out
View full details
  • color-pattern:
    Black, Geometric
  • extraction-type:
    Ducted
  • grease-filter-material:
    Stainless steel
  • brand:
    Elica
  • category:
    Range Hoods
  • colour:
    Black Glass
  • depth:
    19 11/16''
  • width:
    36

Elica EMZ636S3 Range Hood, 36 inch Exterior Width, Chimney, Wall Mounted, 600 CFM, LED, Dishwasher Safe Filters, Black Glass colour Blower Included

36'' Wall-Mounted Hood
EMZ636S3

With a minimalist hood design that s only 2 high, the stainless steel Mezzano is in step with today s world of flat-panel TVs and other futuristic products with clean, architectural lines.


Technical features

MEZZANO has LED dimmable lighting, stainless steel microhole filters and glass touch controls that are hidden when the hood is off. It's also equipped with HUSH Sound Suppression that reduces sound up to 35%, allowing you to comfortably cook and entertain at the same time.
MEZZANO can also be installed as a recirculating system using the available Recirculating Kit.

  • CFM Reduction
CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
  • Hush System
An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • LED Light
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.

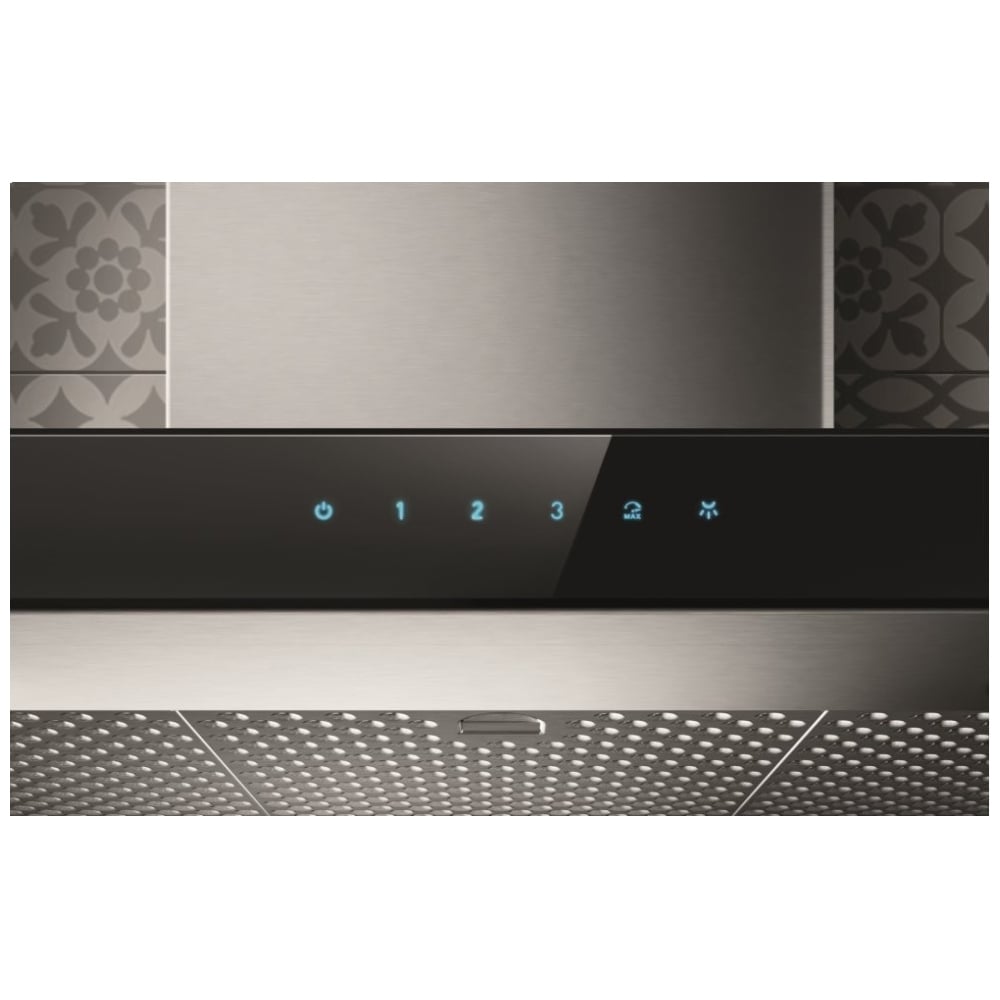

  • Touch Control
Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
  • Top Performance
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
  • 600 CFM, 4 speed
  • 1.2 sones (min.) to 8.2 sones (max.)
  • Ducting: 6'' Round (Top)
  • For ceiling heights up to 12'6'' (with appropriate accessories)
  • LED Lights, Infinitely dimmable
EMZ636S3-specification-sheet-canada.pdf
EMZ636S3-specification-sheet-1.pdf
EMZ636S3-install-instructions-canada.pdf
EMZ636S3-specification-sheet-2.pdf.crdownload

Technical features
Width 30 , 36
Sones 7
Extraction capacity 600 CFM
Selected Model
Color Stainless Steel
Model number EMZ636S3
Dimensions
Dimensions 36'' (W) X 19 11/16'' (D) X 2 3/8'' (H)
Exterior Appearence
Stainless Steel grade 430
Features
Controls Multi-Function Electronic with black glass touch display
Illumination 2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included)
Blower Type 4-speed, 600 CFM
CRS CFM Reduction (< 300 CFM) Included Function
Blower Performance Speed 1, 160 CFM, 1.2 Sones
Speed 2, 280 CFM, 3.3 Sones
Speed 3, 470 CFM, 6.0 Sones
Speed 4, 600 CFM, 8.2 Sones
Filter Type Dishwasher-Safe, Stainless Steel Micro Hole Filters (X3)
Ducting Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition 6” Round with Back Draft Damper (top)
Chimney (ducted out) For ceiling height from 7'6'' to 10'2''
Chimney (recirculating) For ceiling height from 7'10'' to 10'6''
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 490 Watt at 4.1 Amps
Accessories (optionnal)
Extension Chimney Kit (ducted out) KIT02785 For ceiling height from 8'6'' to 12'2'' (with appropriate accessories)
Extension Chimney Kit (recirculating) KIT02785 | For ceiling height from 8'10'' à 12'6'' (with appropriate accessories)
Recirculating Kit KIT0102875 (for 30'' & 36'' 6 deflectors, 3 carbon filters & clips)
